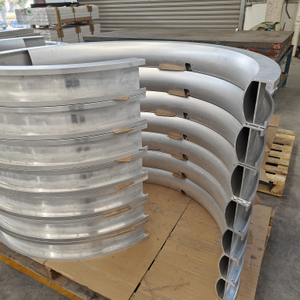

220 degree Aluminum C-Arc for Cath Lab or Mobile C-Arms

The primary purpose of Cath Labs is for diagnosing and treating cardiovascular conditions. Equipped with advanced imaging capabilities, a cath lab allows you to visualize the blood vessels during procedures like stenting, angioplasty and cardiac catherization.

One of the many fabrication services Abelly provides customers is precision stretch forming and bending of aluminum extrusions to create your product’s components.

Different methods of bending and stretch forming will deliver different results. We help customers understand these differences by educating them on the best bending or forming solution for their product. We do this while achieving some of our industry’s tightest tolerances.

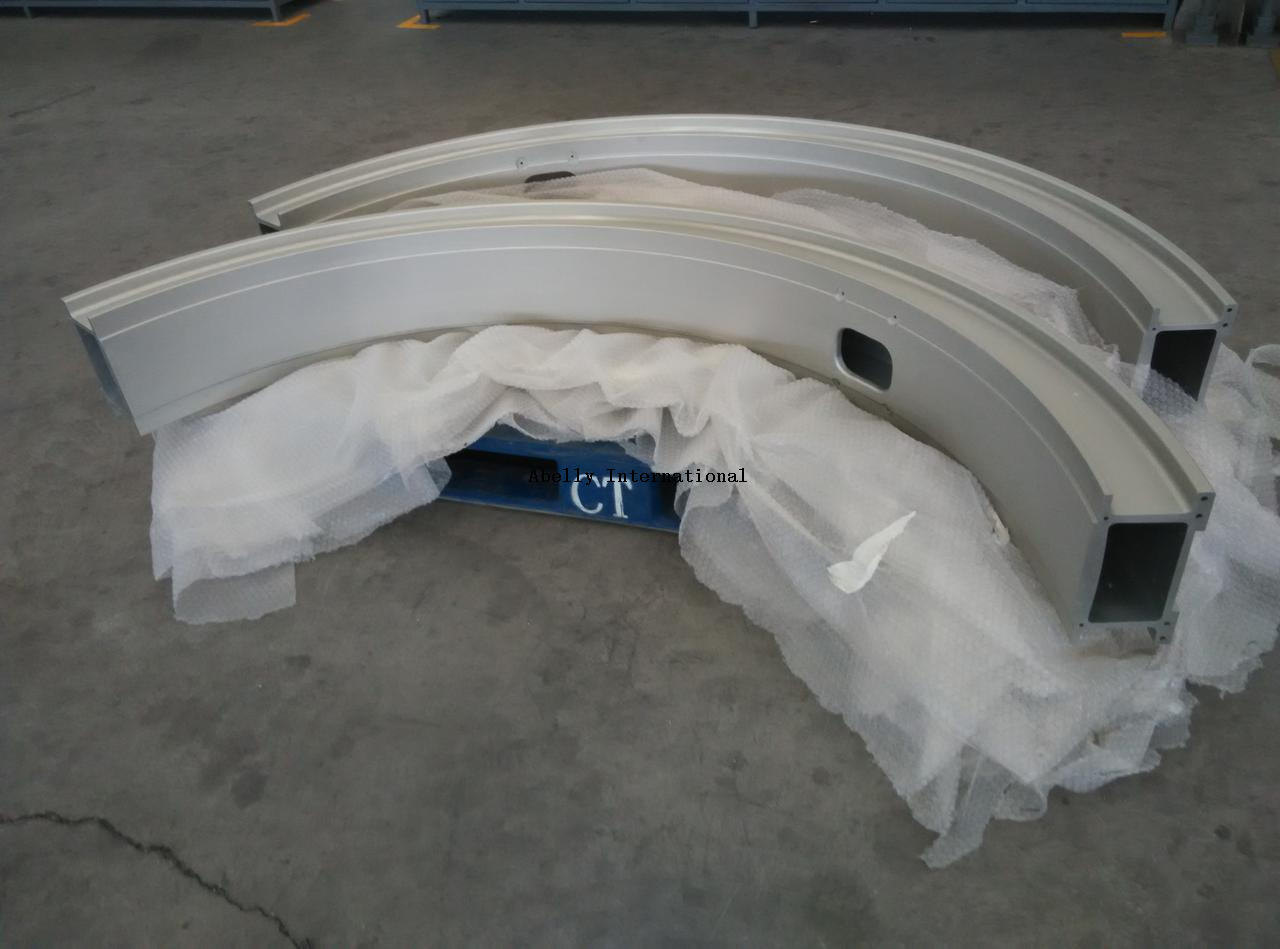

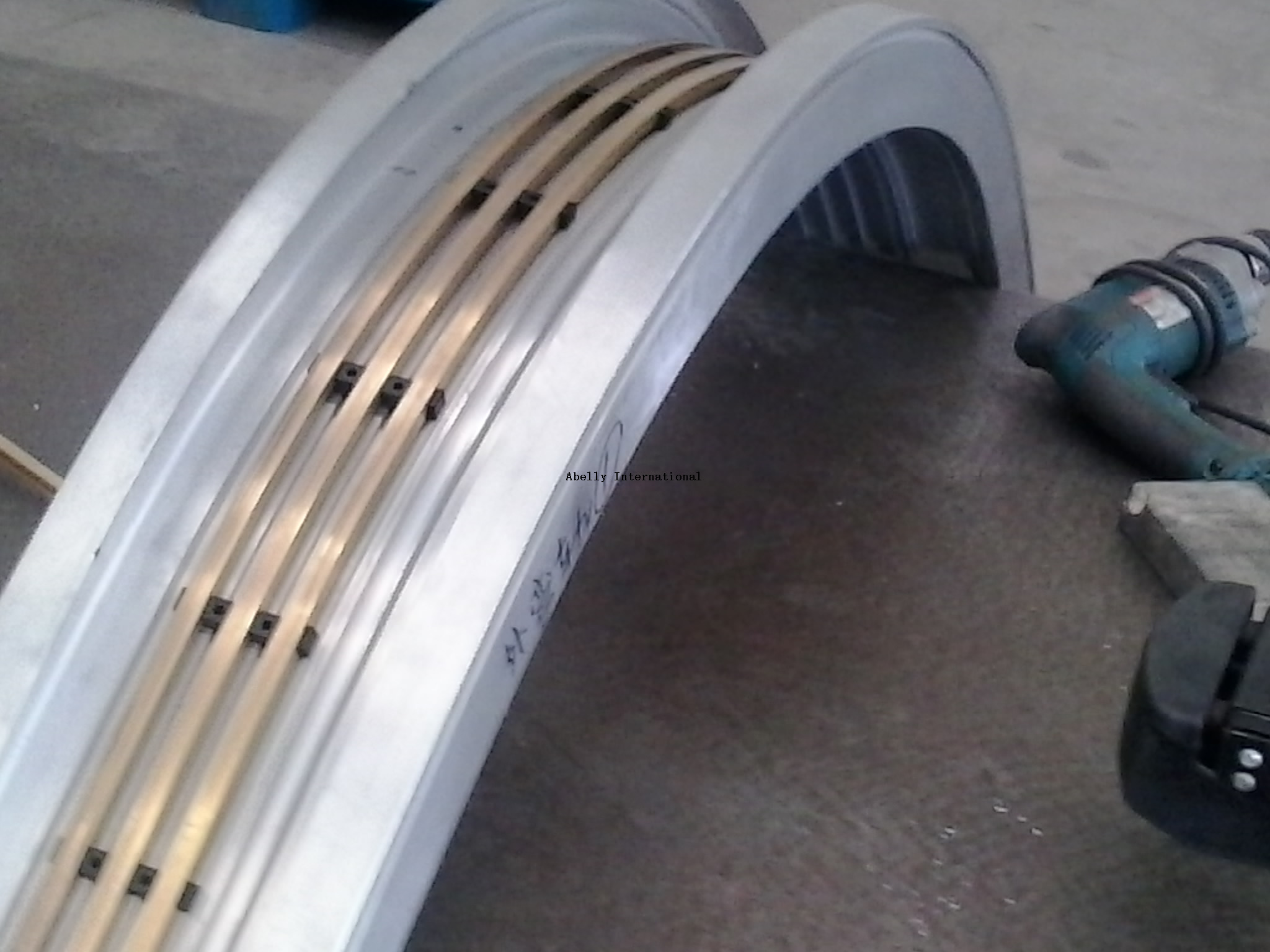

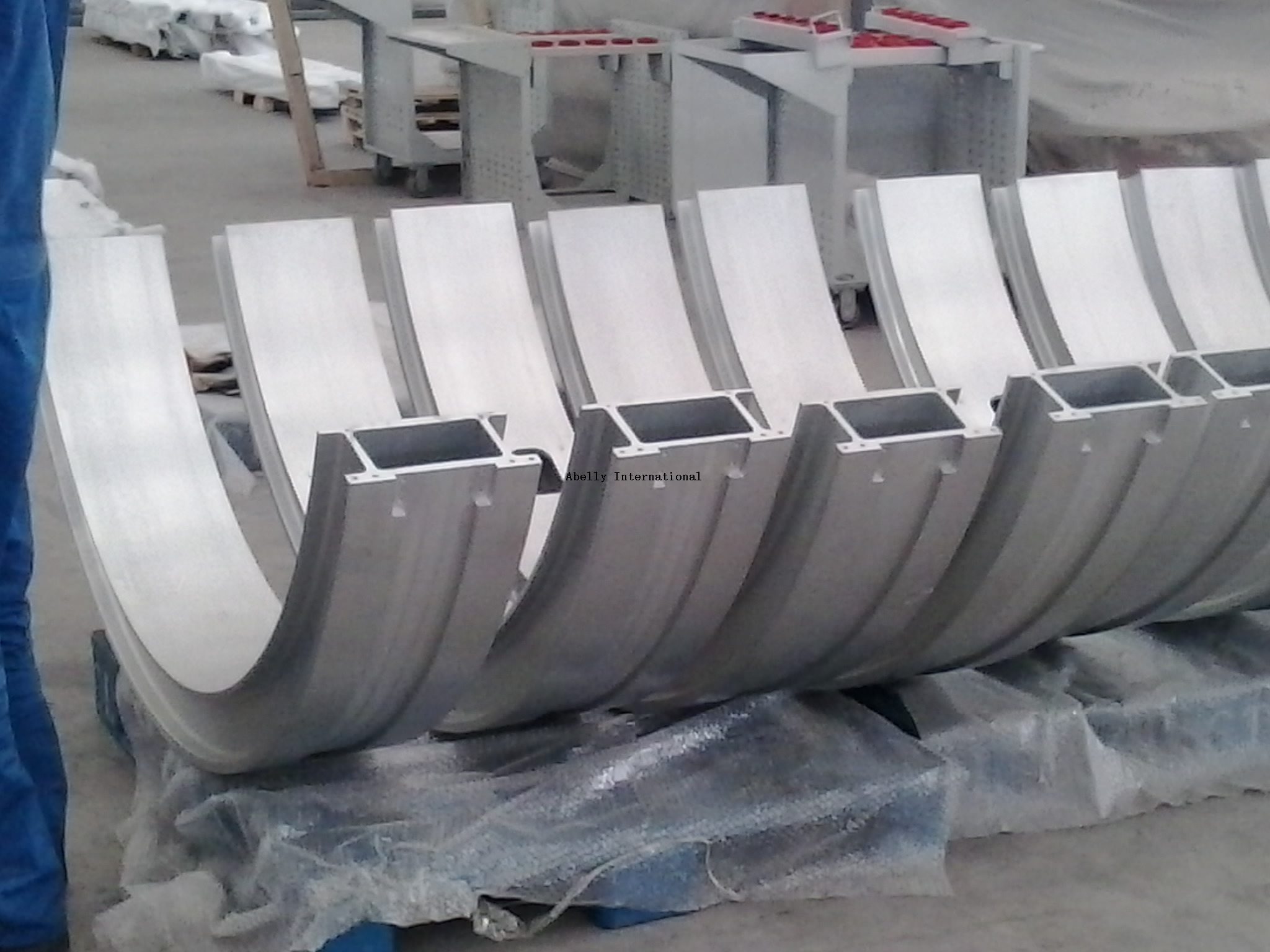

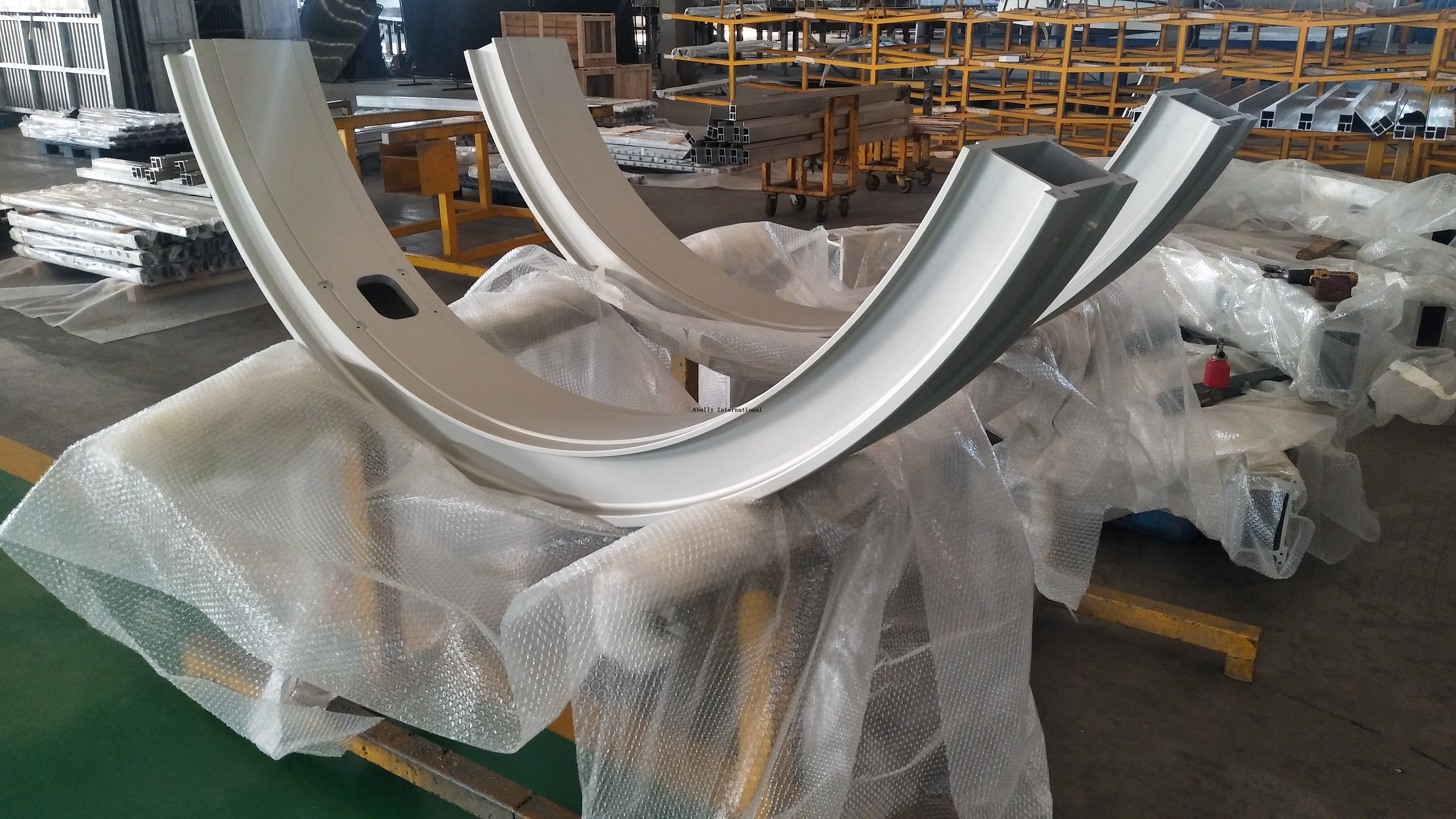

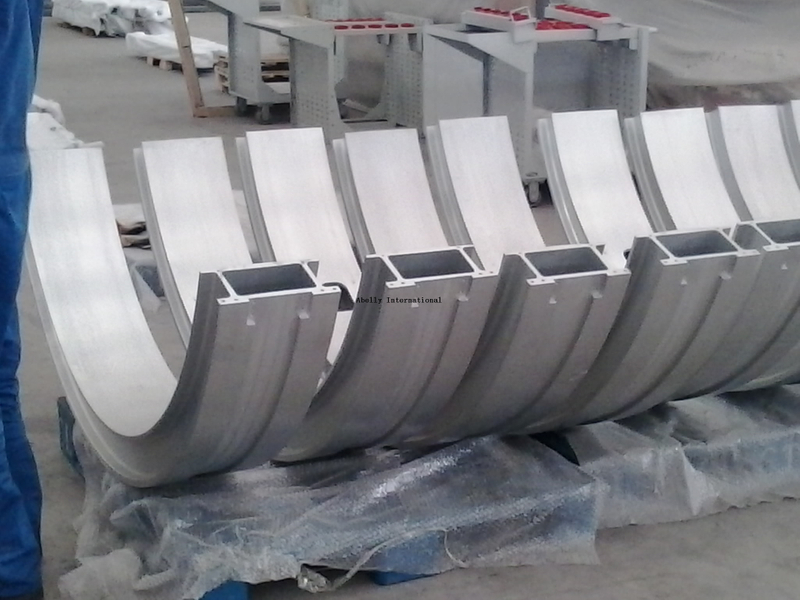

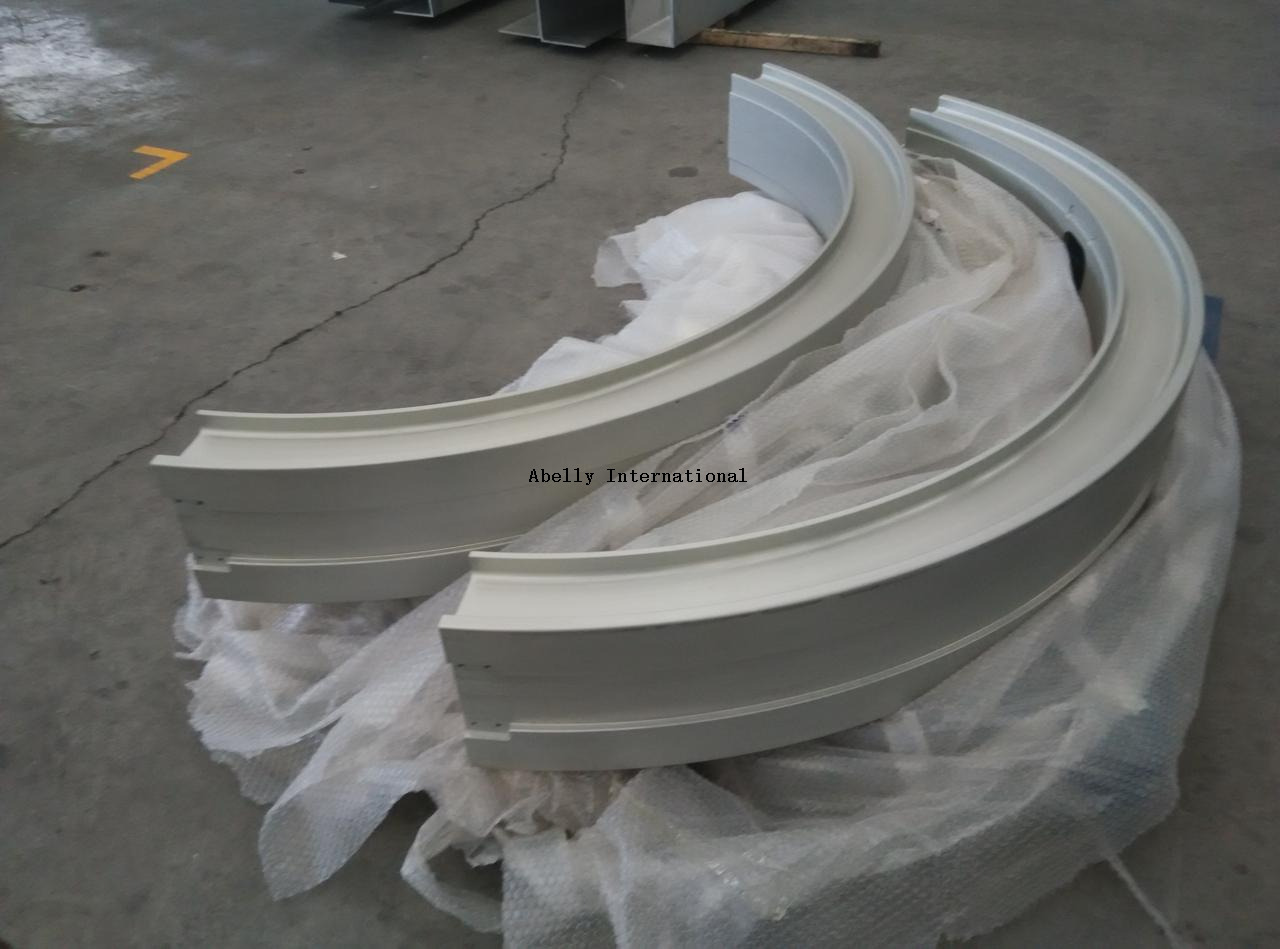

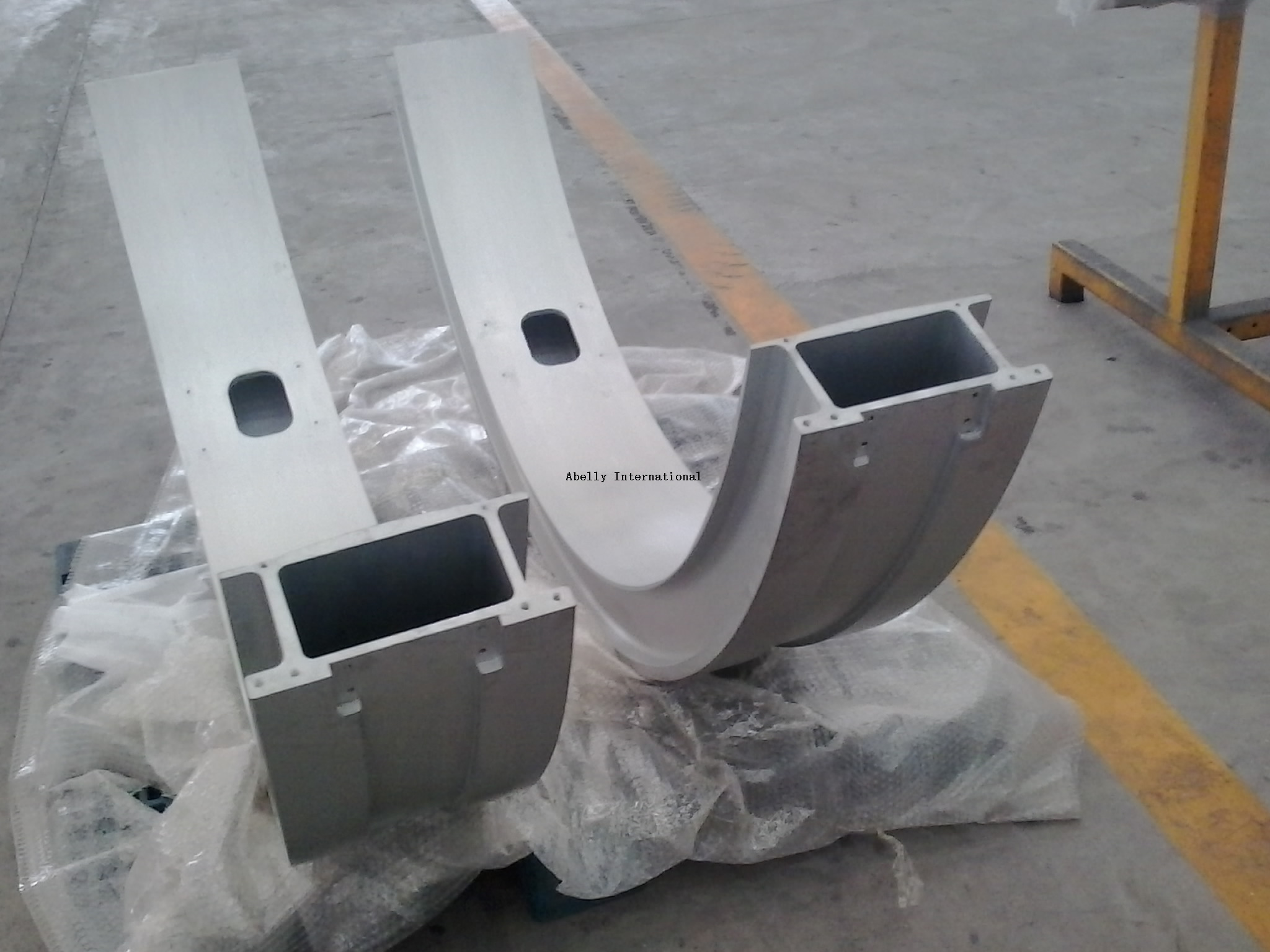

Aluminum C-Arm for Digital Subtraction Angiography

Max Arc 220 degree

Material 6061 T6 Aluminum C-shape

Surface Treatment Anodising

Application cab latch / C -ARM

process CNC machining and bending

section width 240mm

standard Iso13485

drawing CAD / STP
