Aluminum Bending Guide:Processes, Tips & Material Selection

Aluminum bending is a metal fabrication process that deforms aluminum profiles sheets or tubes along a straight axis or specified curve using equipment like press brakes roll benders or stretch formers. Achieving optimal bend quality requires controlling temper bend radius springback and structural integrity to maintain high strength and dimensional tolerances.

As a metallurgical and technical specialist in precision structural aluminum fabrication I have analyzed physical mechanics material grain behavior and mechanical stress profiles. In industrial marine transportation and specialized device manufacturing aluminum bending balances yield strength ultimate tensile stress elongation limits and strain hardening physics. Miscalculating key parameters leads to micro fracturing thinning at outer tensile surfaces springback or structural buckling. Bending processes must meet rising quality standards endure cyclic fatigue maintain tight geometric compliance and eliminate expensive secondary rework. This guide evaluates aluminum bending methods alloy selection criteria deformation principles and advanced tooling strategies.

Table of Contents

1. What Is Aluminum Bending

2. Aluminum Bending Methods and Processes

3. Best Methods for Bending Aluminum Angles

4. How to Manually Bend Aluminum

5. How to Use a Press Brake for Bending

6. Best Materials for Aluminum Bending

7. Key Factors Affecting Aluminum Bending

8. How to Prevent Cracks During Aluminum Bending

What Is Aluminum Bending

Aluminum bending is a plastic deformation manufacturing process that alters the geometric shape of aluminum sheet metal extrusions or tubing by applying mechanical forces exceeding material yield strength while remaining below ultimate tensile strength.

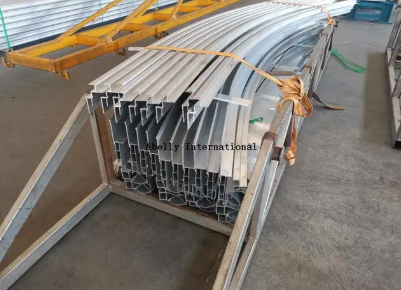

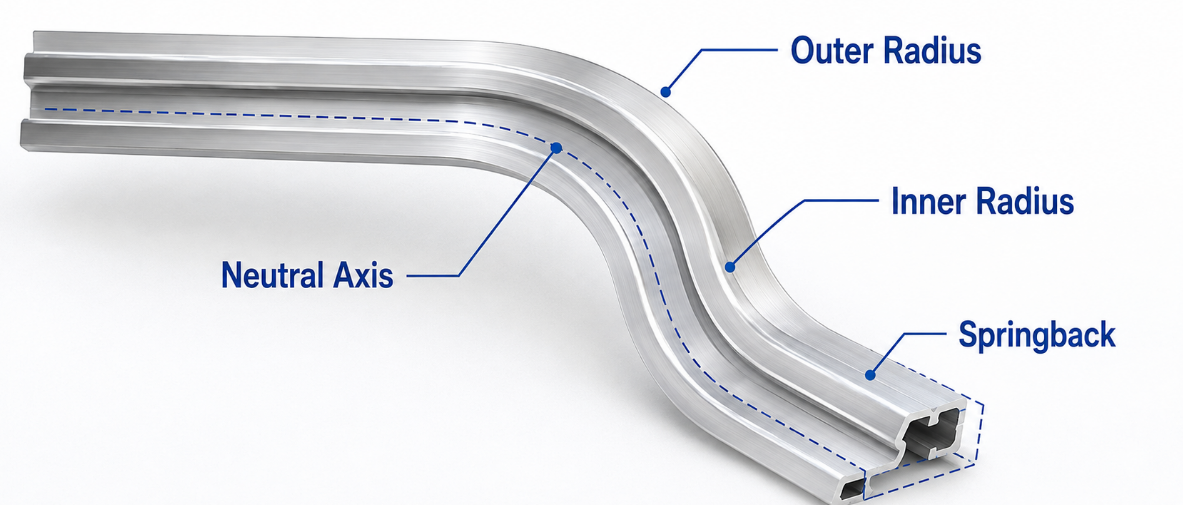

During bending internal stress redistributes across the cross section. Material on the outer radius experiences tensile stress and elongates while material on the inner radius compresses and contracts. The neutral axis where stress equals zero shifts inward toward the compressive surface altering structural bend allowance and required yield compensation.

Aluminum behaves distinctly compared to low carbon steel due to its lower modulus of elasticity. This causes higher springback where elastic recovery makes the finished bend angle open slightly after force release. Controlling aluminum bending requires precise calculation of bend deduction K factor and grain structure alignment relative to the bend line.

In high precision manufacturing components must adhere to strict geometric constraints. For specialized applications such as medical diagnostic equipment frames including precision Aluminum Bending Service for Medical Equipment the process must yield crack free surfaces and uniform curvature. Parts require integration with machining and anodizing demanding tight angular tolerances within 0.2 degrees.

Strain Hardening Behavior: As aluminum deforms during cold bending dislocations multiply within its crystalline lattice. This increases localized yield strength while decreasing remaining ductility requiring careful monitoring during multi stage forming operations.

Aluminum Bending Methods and Processes

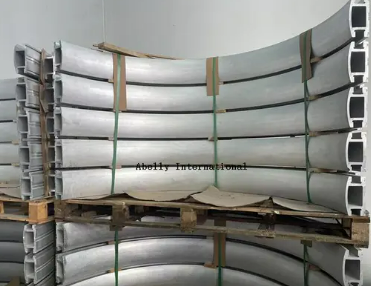

Industrial aluminum bending methods encompass air bending bottoming coining three roll bending stretch forming and rotary draw bending each selected based on geometry production volume and tolerance requirements.

Process selection determines stress state surface finish dimensional stability and production efficiency. Selecting an inappropriate method leads to cross sectional collapse springback variability or tool marks on visual surfaces.

1. Air Bending: The punch forces the aluminum sheet into a V die opening without forcing metal against die walls. The final bend angle depends on punch penetration depth. Contact occurs at three points so required tonnage is relatively low but springback is substantial and requires CNC angle compensation.

2. Bottoming: The aluminum sheet is pressed into full contact with the V die surface. The punch forces material to conform to the die angle setting a consistent radius. Bottoming requires three to five times higher tonnage than air bending but reduces springback variation.

3. Coining: Extreme mechanical tonnage forces the punch tip to penetrate the aluminum sheet past its yield point physically displacing metal at the bend axis. This eliminates springback and creates tight radiuses but requires high press capacity.

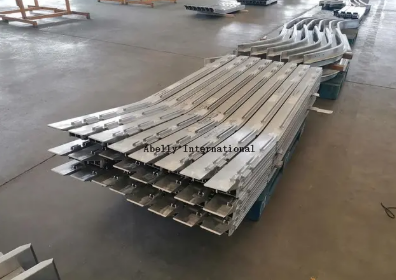

4. Three Roll Bending: Three adjustable rollers apply continuous curvature across long aluminum sheets or extruded profiles. Incremental vertical displacement of the center roll gradually reduces the bend radius for architectural curves or vessel shells.

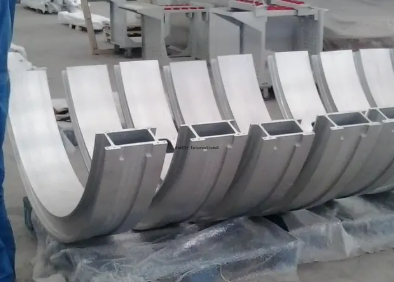

5. Stretch Forming: Clamps grip an aluminum extrusion or sheet at both ends applying longitudinal tensile stress near its yield point before wrapping it over a form die. Maintaining tensile stress eliminates inner radius buckling and suppresses springback.

6. Rotary Draw Bending: Used for tubing and hollow extrusions rotary draw bending clamps material to a rotating bend die while a pressure die wiper die and internal mandrel support profile walls to prevent cross sectional flattening or wrinkling.

Die Shoulder Radiuses and Friction Control: When air bending aluminum smooth polishing and periodic lubrication of V die shoulder radiuses are essential. Unlubricated steel dies cause galling where aluminum particles weld onto die shoulders resulting in surface scratching and stress concentrations that initiate cracking.

Best Methods for Bending Aluminum Angles

The best methods for bending aluminum angle profiles are rotary draw bending and stretch forming with fitted polyoxymethylene or steel support inserts to prevent leg twisting and web buckling.

Bending asymmetric shapes like L angles presents mechanical challenges. Because the cross sectional center of gravity does not align with the shear center applying bending moments causes profile twisting and leg buckling.

1. Rotary Draw Bending with Shoe Inserts: A split bend die machined with a precise geometric cavity fully encapsulates both legs of the angle. A stationary wiper shoe supports the vertical flange at the tangent point of deformation maintaining structural alignment and preventing leg collapse.

2. Stretch Forming for Structural Angles: Applying hydraulic axial tension along the neutral axis prior to sweeping the angle around the form block pulls the entire cross section uniformly into plastic deformation. This eliminates compressive stress in the inner leg preventing inner flange wrinkling.

3. Roll Bending with Guide Rolls: Processing aluminum angles into rings or large arcs utilizes three roll benders equipped with adjustable grooved guide rolls. Guide rollers constrain the vertical leg from slanting or warping while the center roller forces the horizontal leg into the prescribed radius.

Internal Support Fillers: When bending hollow or asymmetric aluminum angles with tight radiuses insert flexible high density polymer mandrels into the angle corner prior to forming. Polymer inserts distribute compressive loads evenly preventing localized creasing along the heel line without marring surfaces.

How to Manually Bend Aluminum

Manually bending aluminum requires soft jaw vice clamping hardwood or synthetic forming blocks precise bend line marking and controlled mechanical force applied using a bending leaf or rubber mallet.

While high volume production relies on automation low volume prototyping and field adjustments demand manual techniques. Because aluminum lacks the ductility of low carbon steel manual operations must mitigate stress concentration points.

1. Layout and Marking: Calculate required bend allowance using bend angle inside radius K factor and sheet thickness values. Mark bend lines using a fine felt marker rather than a sharp steel scribe as scribe scratches create stress risers that trigger premature cracking along the bend axis.

2. Clamping with Form Blocks: Sandwich the aluminum sheet securely between two hardwood or synthetic form blocks inside a vice. The top edge of the front block must feature a smooth pre machined radius equal to or greater than the material minimum bend radius. Never bend aluminum over a sharp vice jaw.

3. Applying Mechanical Force: Use a flat wooden bar or hand bending leaf to distribute force evenly across the length of the sheet. Swing the sheet smoothly into the desired angle in a continuous motion. If minor adjustments are required tap lightly with a high density rubber mallet starting from outer edges.

4. Controlled Thermal Softening: For hard aluminum tempers like 6061 T6 manual bending at room temperature causes snapping. Apply an oxy acetylene flame with a heavy carbon soot setting to coat the bend area. Heat the aluminum uniformly until soot burns off completely around 350 to 400 degrees Celsius then bend immediately while soft.

Manual Bending Procedure: First calculate bend allowance and mark bend lines with a felt marker. Next apply localized soot torch heat if temper exceeds O condition until soot dissipates. Then clamp the sheet between radius blocks in a vice. Finally apply uniform force using a bending bar and over bend slightly to compensate for elastic recovery.

Thermal Monitoring during Softening: Overheating aluminum beyond 450 degrees Celsius causes grain growth and grain boundary melting destroying structural integrity. Use temperature indicating crayons or infrared pyrometers rather than visual cues because aluminum does not change color before melting.

How to Use a Press Brake for Bending

Using a press brake for aluminum bending requires calculating exact tonnage limits selecting V die openings typically 8 to 12 times material thickness setting punch radiuses and applying automated springback angle compensation.

CNC press brakes are vital for industrial sheet metal forming. Achieving consistent aluminum bending requires precise mathematical programming and machine setup.

1. Calculate Required Bending Tonnage: Force for air bending an aluminum sheet on a press brake depends on ultimate tensile strength sheet bend length thickness and V die opening width. Ensure total tonnage does not exceed press brake or tool capacity limits.

2. Selecting V Die Opening and Punch Radius: For aluminum sheet forming a wide V die opening of 10 to 12 times material thickness is recommended. Wider die openings distribute bending force over a larger arc reducing tensile stress and surface indentation marks. The punch tip radius must match or exceed the alloy minimum bend radius.

3. Programming the CNC Controller: Input material thickness tensile strength grain direction inside radius and V die parameters into the CNC controller. Set backgauge finger positions to align the bend line precisely over the center of the V die. CNC laser angle measuring systems monitor the bend angle in real time to compensate for springback.

4. Executing Test Bends: Always execute a test bend on a scrap sample cut from the exact same sheet lot and grain orientation. Measure the resulting inside bend radius flange lengths and springback angle using digital protractors. Adjust Y axis depth parameters to eliminate distortion across long workpieces.

When producing critical structural assemblies such as precision Aluminum Bending Service for Medical Equipment press brake settings must be meticulously calibrated. Medical cart chassises structural C ARCs and support frames demand clean surface aesthetics free of die galling marks and complete angular consistency.

Urethane Die Film and Protective Tooling: To eliminate friction micro scratching and iron contamination die marks on aesthetic aluminum panels lay a heavy duty urethane protective die film across the V die opening before forming. Non marring film cushions the aluminum sheet spreading contact loads uniformly.

Best Materials for Aluminum Bending

The best aluminum alloys for bending are non heat treatable 3003 O or H14 and 5052 O or H32 for extreme formability and heat treatable 6061 O temper when high final structural strength is required post forming.

Selecting the optimal aluminum alloy and temper is a critical decision in component design. Attempting tight radius bends on high strength fully aged tempers like T6 results in structural fracture unless large radiuses or thermal softening are applied.

1. 3003 Aluminum Alloy: 3003 is a strain hardenable non heat treatable alloy featuring exceptional ductility corrosion resistance and thermal conductivity. In its annealed O temper it can be folded flat on itself without micro cracking. It is used for heat exchangers chemical containers and sheet metal ductwork.

2. 5052 Aluminum Alloy: Recognized as a primary sheet metal forming alloy 5052 offers medium strength fatigue resistance and cold forming characteristics. Temper 5052 H32 is standard for industrial enclosures marine structures chassis components and liquid tanks allowing clean tight bends.

3. 6061 Aluminum Alloy: 6061 is a widely specified structural extrusion and plate alloy. In its fully aged T6 state ductility is low requiring generous bend radiuses to prevent fracturing. In its fully annealed O temper it exhibits excellent formability and can be heat treated to T6 temper post forming.

4. 5083 Aluminum Alloy: Designed for structural marine and pressure vessel applications 5083 provides high strength in non heat treatable alloys along with resistance to cryogenic conditions and seawater corrosion. In the H111 temper 5083 bends reliably across moderate radiuses.

5. 7075 Aluminum Alloy: 7075 offers high tensile strength comparable to structural steel but exhibits poor cold formability in the T6 condition. Bending 7075 T6 requires large bend radiuses warm forming elevated temperatures or starting exclusively in the soft O temper followed by full heat treatment.

Standardizing on 5052 H32 for Sheet Metal Fabrication: For general structural enclosures and chassis components requiring structural rigidity and clean bending standardizing on alloy 5052 H32 provides low scrap rates consistent springback behavior and minimal risk of strain age cracking compared to hard 6000 series alloys.

Key Factors Affecting Aluminum Bending

Key factors affecting aluminum bending performance include the minimum bend radius ratio rolling grain direction material thickness tolerance temper state and total strain hardening capacity.

Failing to analyze material parameters prior to initiating production runs causes high scrap rates tooling damage and out of spec dimensions.

1. Minimum Bend Radius: The minimum bend radius is the tightest inside radius to which an aluminum sheet or extrusion can be formed without developing surface micro cracks or structural failure. Minimum bend radius is directly proportional to material thickness and inversely proportional to ductility elongation percentage. Attempting an inside radius tighter than the minimum limit forces outer tensile fibers past their strain limit initiating micro fractures.

2. Rolling Grain Orientation: During rolling mill processing aluminum grains elongate horizontally in the direction of rolling. Bending perpendicular across the grain orientation forces strain to cross multiple grain boundaries maximizing ductility and minimizing cracking risks. Bending parallel to the grain direction concentrates tensile strain along grain boundaries leading to premature splitting along the bend line.

3. Material Thickness Uniformity: Press brake bending tonnage and springback calculations depend heavily on material thickness. Mill variations in sheet thickness alter the finished bend angle. Thickness variations must be tracked with sensors to adjust stroke depth dynamically.

4. Elastic Recovery and Over Bending Compensation: Springback is governed by the ratio of yield strength to elastic modulus. Because aluminum has a low modulus of elasticity its springback is greater than carbon steel. To achieve a final 90 degree bend in 6061 T6 aluminum the punch must over bend material to approximately 83 to 85 degrees allowing elastic stress to relax back to the target angle.

For high spec fabrications such as those encountered in custom Aluminum Bending Service for Medical Equipment controlling physical factors is paramount. Assemblies must accommodate integration with tubing structural C ARCs and chassis mounts without structural distortion.

Calculating Springback Factor: Calculate elastic springback factor using inside radius under load final inside radius after elastic release and sheet thickness values. A springback factor value of 1.0 indicates zero springback while lower values require pre programmed over bending compensations in the CNC controller.

How to Prevent Cracks During Aluminum Bending

Preventing cracks during aluminum bending requires enforcing minimum bend radiuses orienting bend lines perpendicular to grain direction deburring edge micro notches utilizing warm forming temperatures and selecting annealed tempers.

Outer radius surface cracking is the primary scrap mode in aluminum bending. Cracking occurs when tensile stress on the outer surface exceeds the material local strain failure threshold. Implementing systematic controls eliminates crack occurrence.

1. Enforce Strict Minimum Bend Radius Thresholds: Never force aluminum into a sharp inside corner. Select a punch radius that respects the alloy minimum bend radius. If design constraints demand a tight corner transition from a hard temper like T6 to an intermediate temper like T4 or fully annealed O temper.

2. Deburr and Polish Sheared or Cut Edges: When aluminum sheets are sheared punched or laser cut micro fractures burrs and localized work hardened zones form along cut edges. When these edges experience tensile strain during bending micro notches act as stress concentration points that initiate cracks. Deburr chamfer or smooth grind sheet edges along the bend zone prior to forming.

3. Align Bends Perpendicular to Rolling Grain Direction: When nesting parts on CNC laser cutters or routers orient critical bend lines at a 90 degree angle relative to sheet rolling direction. If multi directional bends on a single sheet prevent 90 degree alignment nest the sheet at a 45 degree angle to distribute tensile strain evenly.

4. Implement Elevated Temperature Bending: For high strength alloys such as 6061 T6 and 7075 T6 heating material to a controlled temperature between 150 and 200 degrees Celsius increases ductility and reduces yield strength without permanently degrading room temperature mechanical properties. Warm forming reduces springback and prevents outer fiber fracturing on tight radius bends.

5. Utilize Wide V Die Openings and Lubrication: Increasing V die openings reduces localized shear strain by increasing the arc length over which the sheet deforms. Applying synthetic lubricants or polyethylene films along die shoulders reduces surface drag preventing localized stretching and outer surface thinning.

Dye Penetrant Inspection for Critical Components: For structural aerospace marine or medical aluminum assemblies subject to high cyclic fatigue visual inspection alone is insufficient to detect sub surface cracks. Implement post bending liquid dye penetrant testing to verify surface integrity before sending parts to final anodizing or paint coating.

Summary and Conclusions

Mastering industrial aluminum bending requires a deep understanding of metallurgical physics material strain limits and precise fabrication techniques. Unlike steel aluminum demands controls over minimum bend radiuses grain orientation springback compensation and specialized tooling surfaces to prevent defects such as micro cracking galling and profile buckling.

By selecting optimal non heat treatable alloys like 3003 and 5052 H32 for deep formability or managing heat treatable tempers like 6061 O versus 6061 T6 through warm forming and post forming heat treatment engineers can achieve tight dimensional tolerances and structural performance. Whether utilizing CNC press brakes stretch formers or rotary draw benders with custom mandrels matching the forming process to profile geometry guarantees minimal scrap lower production costs and superior aesthetic appeal. Adhering to the technical parameters operational formulas and maintenance protocols detailed in this guide empowers manufacturing specialists to produce aluminum structural components for demanding global applications.
